Getting to Know the Pacific Line

  • May 25
  • 5 min read

Updated: May 26

The Nardi PACIFIC line is a series of high-pressure vertical and portable compressors designed to deliver clean, compressed air across a range of over 40 models of breathing air and industrial applications. The models within the line vary in output, configuration, and drive options, giving buyers the flexibility to match the right unit to their specific pressure and flow requirements.


In this post, we'll walk through what defines the Pacific family: the pressure ratings, delivery rates, filtration, and available vertical and portable configurations. If you're evaluating whether a Pacific fits your operation, this is the place to start.


A collage of Pacific compressor models.
A collage of Pacific compressor models.

How to Read the Specs

• Maximum working pressure is shown in bar (psi).

• Delivery (FAD) is shown in L/min (cfm) based on the compressor model range.

• Power lists motor/engine ranges in kW (hp) that can vary widely among the available models.

• Frame type identifies cabinet types, i.e., vertical and portable.

• Model range provides the number of model compressors available.

• Weight range offers the high and low weight of the compressors in that model.



 All specifications are manufacturer-published ranges and are subject to change without notice. Available options may vary by configuration and will affect weight.

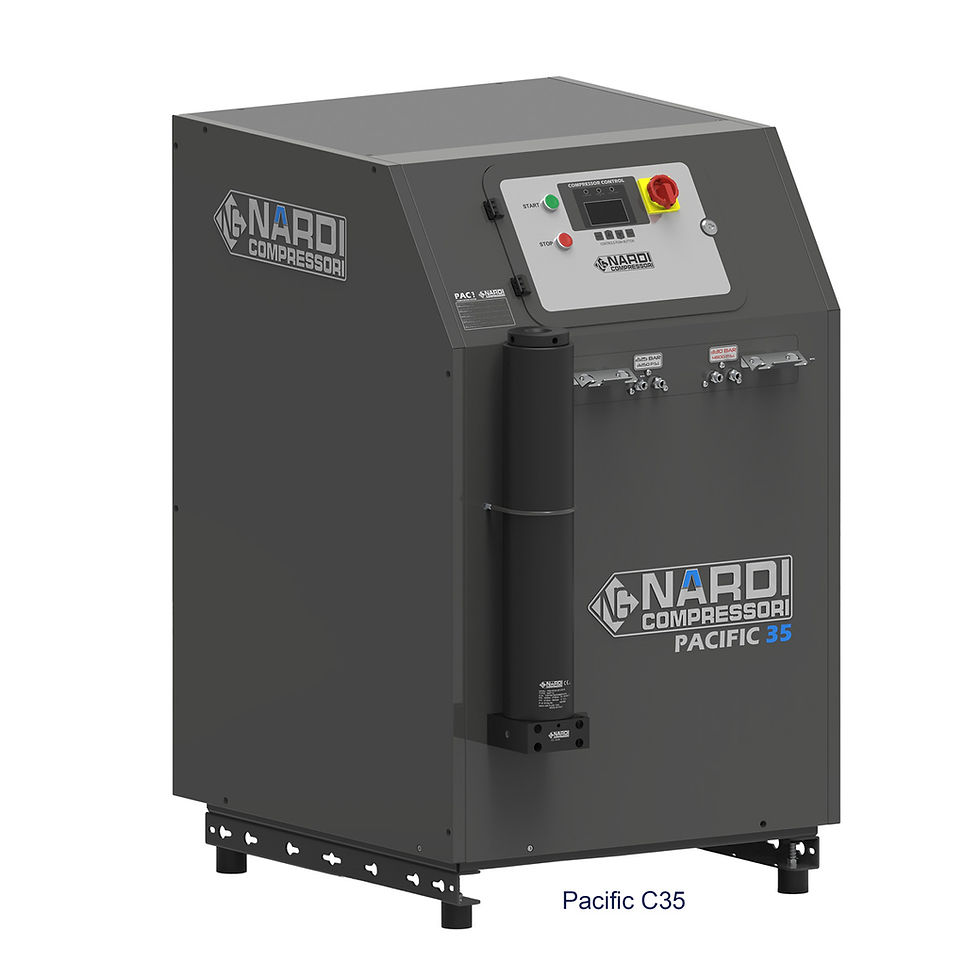

Pacific C35 vertical high-pressure breathing air compressor.
Pacific C35 vertical high-pressure breathing air compressor.

Our first silent cabinet in the Pacific line; the vertical Pacific C is optimized for indoor installations where noise control and ease of operation matter.

  • Maximum working pressure: up to 420 bar (6000 psi)

  • Delivery range: 160–350 L/min (5.7–12.4 cfm)

  • Power: 3.0–7.5 kW (4–10 hp) electric motor

  • Frame type: Silenced cabinet with sound-absorbing panels

  • Model range: 5 (Pacific C16–C35)

  • Weight range: 205–235 kg (452–518 lb)

  • Sound range: 66–75 dBA

  • Dimensions (L×W×H): 75 × 95 × 123 cm (29.5 × 37.4 × 48.4")

  • Notables: Electronic control panel; automatic condensate drain with patented Slow Flow system.


Pacific CX85 vertical high-pressure breathing air compressor.
Pacific CX85 vertical high-pressure breathing air compressor.

High-output, silenced cabinets for busy fill stations and operations needing up to 30 cfm (850 L/min) throughput.

  • Maximum working pressure: up to 420 bar (6000 psi)

  • Delivery range: 500–850 L/min (17.7–30.0 cfm)

  • Power: 11–18.5 kW (15–25 hp) electric motor

  • Frame type: Silenced cabinet; optional storage bundles and filling panels

  • Model range: 4 (Pacific CX50 – CX85 Silenced)

  • Weight range: 882–1256 lb (400–570 kg)

  • Sound: 73 dBA

  • Dimensions (L×W×H): 84 × 75 × 142 cm (33 × 30 × 56”)

  • Notables: Dual PAC3 filtration on higher-flow models; electronic control; Slow Flow condensate system.

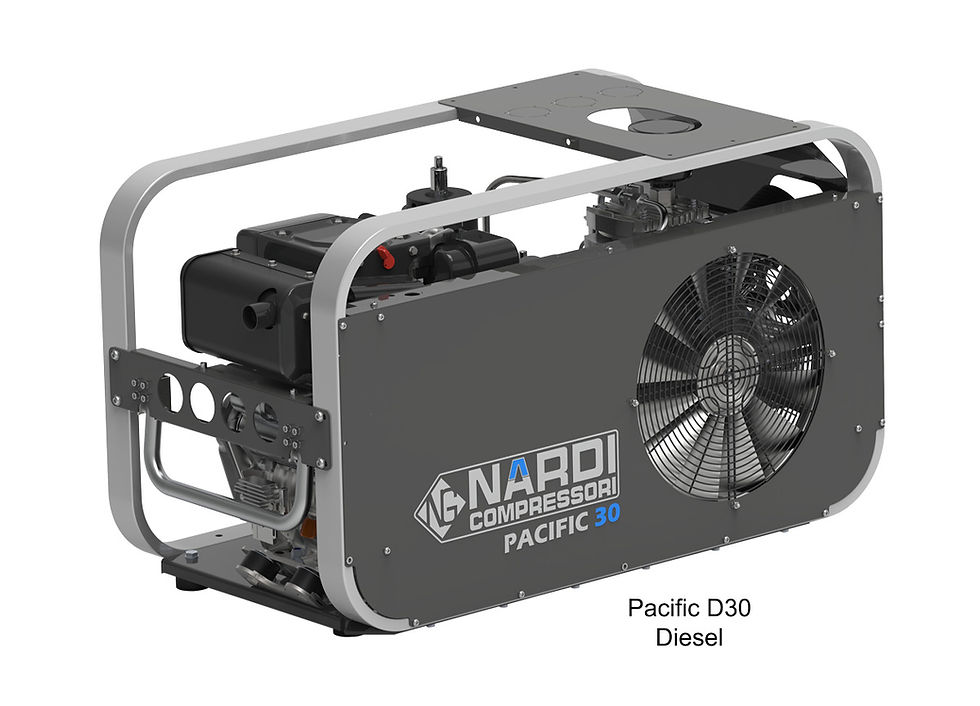

Pacific D30 portable diesel-powered, high-pressure compressor.
Pacific D30 portable diesel-powered, high-pressure compressor.

Portable diesel-engine variant for remote or mobile operations where electric power isn’t practical.

  • Maximum working pressure: 330 bar (4700 psi) or 420 bar (6000 psi)

  • Delivery range: 230–350 L/min (8.1–12.4 cfm)

  • Power: 4–7.5 kW (5.5–10 hp) diesel engine

  • Frame type: Portable frame in aluminum/stainless with anti-vibration mounts.

  • Model range: 4 (Pacific D23–D35)

  • Sound range: 85–89 dBA

  • Weight range: 165–172 kg (363–379 lb)

  • Dimensions (L×W×H): 109 × 58 × 65 cm (43 × 23 × 26")

  • Notables: Electronic control; optional dual-pressure filling; Slow Flow condensate system.

Pacific E27 automatic portable high-pressure breathing air compressor with PAC1 filter and optional trolley.
Pacific E27 automatic portable high-pressure breathing air compressor with PAC1 filter and optional trolley.

Compact electric, widely used by dive centers and small departments; balanced portability and performance.

  • Maximum working pressure: 330 bar (4800 psi) or 420 bar (6000 psi)

  • Delivery range: 160–350 L/min (5.7–12.4 cfm)

  • Power: 3–7.5 kW (4–10 hp)

  • Frame type: Portable aluminum frame with stainless components; trolley optional.

  • Model range: 5 (Pacific E16–E35)

  • Sound: 74–82 dBA

  • Weight range: 108–123 kg (238–271 lb)

  • Dimensions  (L×W×H): 103 × 53 × 65 cm (41 × 21 × 26")

  • Notables: Electronic control available; optional PAC FILTER 2/3; optional dual-pressure filling.


Pacific EG35 portable basic high-pressure breathing air compressor with PAC3 filter.
Pacific EG35 portable basic high-pressure breathing air compressor with PAC3 filter.

Gasoline-powered portability with outputs up to 350 L/min; ideal where grid power is unavailable.

  • Maximum working pressure: 330 bar (4700 psi) or 420 bar (6000 psi)

  • Delivery range: 230–350 L/min (8.1–12.4 cfm)

    Power: 6.7–10 kW (9–13 hp) gasoline engine

  • Frame type: Portable frame E and P; trolley and handles optional.

  • Model range: 4 (Pacific EG23–EG35)

  • Sound: 86–88 dBA

  • Weight range:  108–123 kg (238–271 lb)

  • Dimensions  (L×W×H): 111 × 53 × 65 cm (44 × 21 × 26")

  • Notables: Optional dual-pressure kit; PAC FILTER 2/3 options.

Pacific P16 basic high-pressure breathing air compressor with PAC3 filter.
Pacific P16 basic high-pressure breathing air compressor with PAC3 filter.

Portable electric group with integrated control options; popular for small teams needing compact electric power.

  • Maximum working pressure: 330 bar (4700 psi) or 420 bar (6000 psi)

  • Delivery range: 160–350 L/min (5.7–12.4 cfm)

  • Power: 3–7.5 kW (4–10 hp)

  • Frame type: Portable frame with optional trolley

  • Model range: 5 (Pacific P16–P35)

  • Sound: 74–78 dBA

  • Weight range: 127–142 kg (280–313 lb)

  • Dimensions  (L×W×H): 118 × 54 × 69 cm (46 × 21 × 27")

  • Notables: Electronic Control System available; optional Air Quality Control and PAC FILTER 2/3.


Pacific PG35 automatic high-pressure breathing air compressor with PAC2 filter and optional trolley.
Pacific PG35 automatic high-pressure breathing air compressor with PAC2 filter and optional trolley.

Gasoline-engine counterpart to the Pacific P; same compact footprint, engine-driven convenience

  • Maximum working pressure: 330 bar (4700 psi) or 420 bar (6000 psi)

  • Delivery range: 230–350 L/min (8.1–12.4 cfm)

  • Power: 6.7–10 kW (9–14 hp) gasoline-engine

  • Frame type: Portable frame; optional trolley/handles.

  • Model range: 4 (Pacific PG23–PG35)

  • Sound: 79–81 dBA

  • Weight range: 113–128 kg (249–282 lb)

  • Dimensions  (L×W×H): 118 × 54 × 69 cm (46 × 21 × 27")

  • Notables: Optional Air Quality Control; PAC FILTER 2/3 options.

Pacific M35 high-pressure breathing air compressor with 330 bar lever valves, and PAC3 filter.
Pacific M35 high-pressure breathing air compressor with 330 bar lever valves, and PAC3 filter.

Large, quiet cabinets for professional filling; a step up from C with more space for options and accessories.

  • Maximum working pressure: up to 420 bar (6000 psi)

  • Delivery range: 230–350 L/min (8.1–12.4 cfm)

  • Power: 4–7.5 kW (5.5–10 hp)

  • Frame type: Silenced cabinet; optional cylinder storage racks available

  • Model range: 4 (Pacific M23–M35)

  • Sound: 66–72 dBA

  • Weight range: 264–274 kg (582–604 lb)

  • Dimensions  (L×W×H): 75 × 108 × 134 cm (30 × 43 × 53")

  • Notables: Dual PAC filters on some models; electronic control; Slow Flow condensate system.

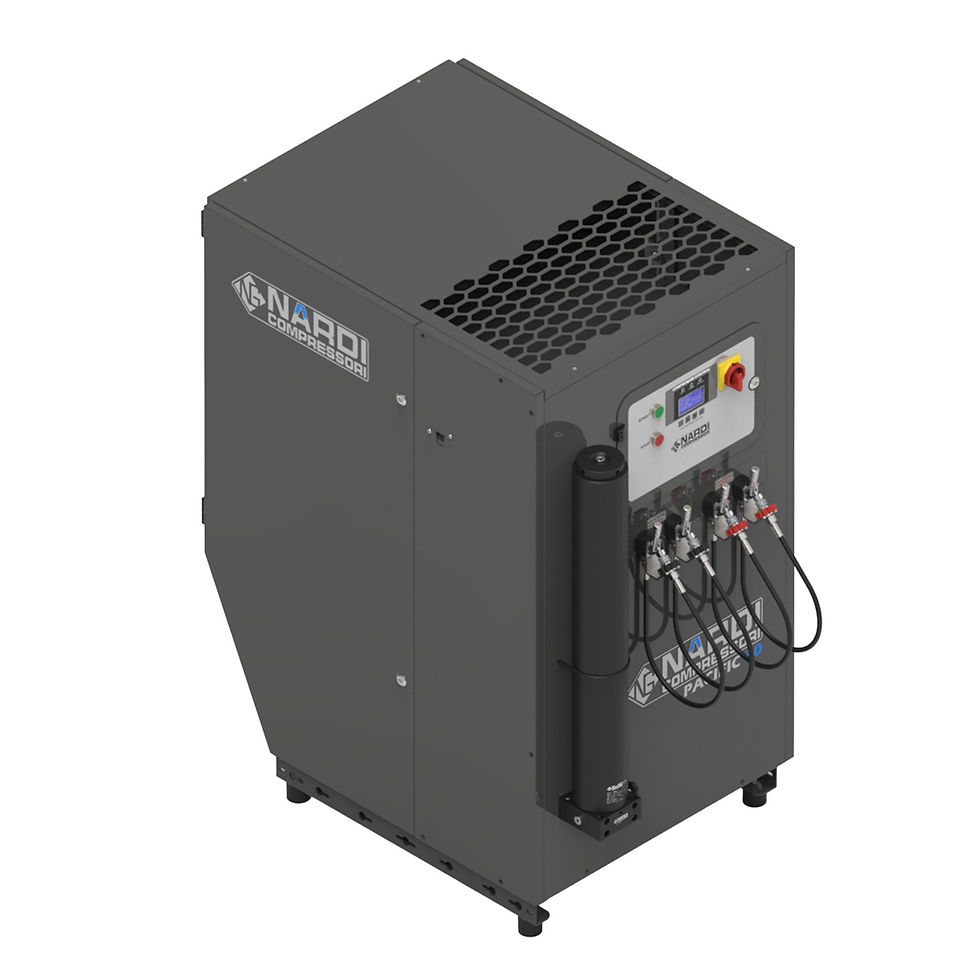

Pacific M30N Nitrox high-pressure breathing air compressor with PAC2 filter.
Pacific M30N Nitrox high-pressure breathing air compressor with PAC2 filter.

Nitrox-capable Pacific M variant for enriched air oxygen systems handles up to 40% O₂ at 300 L/min (10.6 cfm) throughput.

  • Maximum working pressure: 420 bar (6000 psi)

  • Delivery: 300 L/min (10.6 cfm)

  • Power: 5.5 kW (7.5 hp)

  • Frame type: Silenced cabinet

  • Model range: 1 (Pacific M30N)

  • Sound: 68 dBA

  • Weight: 269 kg (593 lb)

  • Dimensions  (L×W×H): 75 × 108 × 134 cm (30 × 43 × 53")

  • Notables: Rated to 40% nitrox; 4-stage; single PAC2 filtration.

Pacific MX high-pressure breathing air compressor.
Pacific MX high-pressure breathing air compressor.

Our highest-capacity Pacific platform (500–850 L/min · 17.7– 30.0 cfm) in silenced frames for heavy-duty fill stations.

  • Maximum working pressure: up to 420 bar (6000 psi)

  • Delivery range: 500–850 L/min (17.7–30.0 cfm)

  • Power: 11–18.5 kW (15–25 hp)

  • Frame type: Silenced cabinet; optional cylinder storage rack

  • Model range: 5 (Pacific MX50–MX85)

  • Sound: 68 dBA

  • Weight range: 460–620 kg (1014–1367 lb)

  • Dimensions  (L×W×H): 86 × 150 × 174 cm (34 × 59 × 69")

  • Notables: Dual PAC3 filtration on higher-flow models; electronic control; Slow Flow condensate system.


Pacific MX 60N Nitrox high-pressure breathing air compressor.
Pacific MX 60N Nitrox high-pressure breathing air compressor.

Factory nitrox-capable Pacific MX variant for enriched air oxygen systems — up to 40% oxygen (EANx40) and 21.2 cfm (600 L/min) throughput.

  • Maximum working pressure: 420 bar (6000 psi)

  • Delivery: 600 L/min (21.2 cfm)

  • Power: 11 kW (15 hp)

  • Frame type: Silenced cabinet

  • Model range: 1 (Pacific MX60N)

  • Sound: 68 dBA

  • Weight: 520 kg (1146 lb)

  • Dimensions  (L×W×H): 86 × 150 × 174 cm (34 × 59 × 69")

  • Notables: Rated to 40% nitrox; 4-stage; dual PAC3 filtration.


Choosing your Pacific

Need help mapping flow, pressure, and duty cycle to real-world usage? Get a Quote by completing our short online questionnaire. (In the Americas, please complete this form.) A Nardi Compressori representative from your region will contact you as soon as possible.


Originally published September 2025. Revised 25 May 2026 for accuracy and new website links.
